  ../images/main/bullet_green_ball.gif Procedural blocks and timing controls.



  • Delay controls.
  • Edge-Sensitive Event controls.
  • Level-Sensitive Event controls-Wait statements.
  • Named Events.



  ../images/main/bulllet_4dots_orange.gif Delay Controls

Delays the execution of a procedural statement by specific simulation time.

#< time > < statement >;




  ../images/main/bullet_star_pink.gif Example - clk_gen




  1 module clk_gen ();
  2
  3 reg clk, reset;
  4
  5 initial begin
  6   $monitor ("TIME = %g RESET = %b CLOCK = %b", $time, reset, clk);
  7   clk = 0;
  8   reset = 0;
  9    #2  reset = 1;
 10    #5  reset = 0;
 11    #10  $finish;
 12 end
 13
 14 always
 15    #1  clk =  ! clk;
 16
 17 endmodule
You could download file clk_gen.v here



Simulation Output




 TIME = 0  RESET = 0 CLOCK = 0
 TIME = 1  RESET = 0 CLOCK = 1
 TIME = 2  RESET = 1 CLOCK = 0
 TIME = 3  RESET = 1 CLOCK = 1
 TIME = 4  RESET = 1 CLOCK = 0
 TIME = 5  RESET = 1 CLOCK = 1
 TIME = 6  RESET = 1 CLOCK = 0
 TIME = 7  RESET = 0 CLOCK = 1
 TIME = 8  RESET = 0 CLOCK = 0
 TIME = 9  RESET = 0 CLOCK = 1
 TIME = 10 RESET = 0 CLOCK = 0
 TIME = 11 RESET = 0 CLOCK = 1
 TIME = 12 RESET = 0 CLOCK = 0
 TIME = 13 RESET = 0 CLOCK = 1
 TIME = 14 RESET = 0 CLOCK = 0
 TIME = 15 RESET = 0 CLOCK = 1
 TIME = 16 RESET = 0 CLOCK = 0



  ../images/main/bullet_star_pink.gif Waveform



../images/verilog/clk_gen.gif



  ../images/main/bulllet_4dots_orange.gif Edge sensitive Event Controls

Delays execution of the next statement until the specified transition on a signal.




syntax : @ (< posedge >|< negedge > signal) < statement >;




../images/verilog/edge_sensitive.gif



  ../images/main/bullet_star_pink.gif Example - Edge Wait




  1 module edge_wait_example();
  2
  3 reg enable, clk, trigger;
  4
  5 always @ (posedge enable)
  6 begin
  7   trigger = 0;
  8   // Wait for 5 clock cycles
  9   repeat (5) begin
 10     @ (posedge clk) ;
 11   end
 12   trigger = 1;
 13 end
 14
 15 //Testbench code here
 16 initial begin
 17   $monitor ("TIME : %g CLK : %b ENABLE : %b TRIGGER : %b",
 18     $time, clk,enable,trigger);
 19   clk = 0;
 20   enable = 0;
 21    #5   enable = 1;
 22    #1   enable = 0;
 23    #10  enable = 1;
 24    #1   enable = 0;
 25    #10  $finish;
 26 end
 27
 28 always
 29   #1  clk = ~clk;
 30
 31 endmodule
You could download file edge_wait_example.v here



Simulator Output




 TIME : 0 CLK : 0 ENABLE : 0 TRIGGER : x
 TIME : 1 CLK : 1 ENABLE : 0 TRIGGER : x
 TIME : 2 CLK : 0 ENABLE : 0 TRIGGER : x
 TIME : 3 CLK : 1 ENABLE : 0 TRIGGER : x
 TIME : 4 CLK : 0 ENABLE : 0 TRIGGER : x
 TIME : 5 CLK : 1 ENABLE : 1 TRIGGER : 0
 TIME : 6 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 7 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 8 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 9 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 10 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 11 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 12 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 13 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 14 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 15 CLK : 1 ENABLE : 0 TRIGGER : 1
 TIME : 16 CLK : 0 ENABLE : 1 TRIGGER : 0
 TIME : 17 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 18 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 19 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 20 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 21 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 22 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 23 CLK : 1 ENABLE : 0 TRIGGER : 0
 TIME : 24 CLK : 0 ENABLE : 0 TRIGGER : 0
 TIME : 25 CLK : 1 ENABLE : 0 TRIGGER : 1
 TIME : 26 CLK : 0 ENABLE : 0 TRIGGER : 1



  ../images/main/bulllet_4dots_orange.gif Level-Sensitive Even Controls ( Wait statements )

Delays execution of the next statement until < expression > evaluates to true

syntax : wait (< expression >) < statement >;







  ../images/main/bullet_star_pink.gif Example - Level Wait




  1 module wait_example();
  2
  3 reg mem_read, data_ready;
  4 reg [7:0] data_bus, data;
  5
  6 always @ (mem_read or data_bus or data_ready)
  7 begin
  8   data = 0;
  9   while (mem_read == 1'b1) begin
 10     // #1 is very important to avoid infinite loop
 11     wait (data_ready == 1)  #1  data = data_bus;
 12   end
 13 end
 14
 15 // Testbench Code here
 16 initial begin
 17  $monitor ("TIME = %g READ = %b READY = %b DATA = %b",
 18    $time, mem_read, data_ready, data);
 19  data_bus = 0;
 20  mem_read = 0;
 21  data_ready = 0;
 22   #10  data_bus = 8'hDE;
 23   #10  mem_read = 1;
 24   #20  data_ready = 1;
 25   #1   mem_read = 1;
 26   #1   data_ready = 0;
 27   #10  data_bus = 8'hAD;
 28   #10  mem_read = 1;
 29   #20  data_ready = 1;
 30   #1   mem_read = 1;
 31   #1   data_ready = 0;
 32   #10  $finish;
 33 end
 34
 35 endmodule
You could download file wait_example.v here



Simulator Output




 TIME = 0  READ = 0 READY = 0 DATA = 00000000
 TIME = 20 READ = 1 READY = 0 DATA = 00000000
 TIME = 40 READ = 1 READY = 1 DATA = 00000000
 TIME = 41 READ = 1 READY = 1 DATA = 11011110
 TIME = 42 READ = 1 READY = 0 DATA = 11011110
 TIME = 82 READ = 1 READY = 1 DATA = 11011110
 TIME = 83 READ = 1 READY = 1 DATA = 10101101
 TIME = 84 READ = 1 READY = 0 DATA = 10101101



  ../images/main/bulllet_4dots_orange.gif Intra-Assignment Timing Controls

Intra-assignment controls always evaluate the right side expression immediately and assign the result after the delay or event control.




In non-intra-assignment controls (delay or event control on the left side), the right side expression is evaluated after the delay or event control.




  ../images/main/bullet_star_pink.gif Example - Intra-Assignment




  1 module intra_assign();
  2
  3 reg a, b;
  4
  5 initial begin
  6   $monitor("TIME = %g  A = %b  B = %b",$time, a , b);
  7   a = 1;
  8   b = 0;
  9   a = #10 0;
 10   b = a;
 11    #20  $display("TIME = %g  A = %b  B = %b",$time, a , b);
 12   $finish;
 13 end
 14
 15 endmodule
You could download file intra_assign.v here



Simulation Output




 TIME = 0   A = 1  B = 0
 TIME = 10  A = 0  B = 0
 TIME = 30  A = 0  B = 0

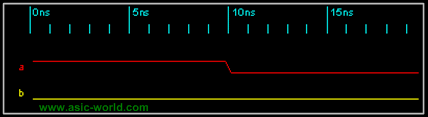

  ../images/main/bullet_star_pink.gif Waveform



../images/verilog/intra_assign.gif



  ../images/main/bulllet_4dots_orange.gif Modeling Combo Logic with Continuous Assignments

Whenever any signal changes on the right hand side, the entire right-hand side is re-evaluated and the result is assigned to the left hand side.




  ../images/main/bullet_star_pink.gif Example - Tri-state Buffer




  1 module tri_buf_using_assign();
  2 reg data_in, enable;
  3 wire pad;
  4
  5 assign pad = (enable) ? data_in : 1'bz;
  6
  7 initial begin
  8   $monitor ("TIME = %g ENABLE = %b DATA : %b PAD %b",
  9     $time, enable, data_in, pad);
 10    #1  enable = 0;
 11    #1  data_in = 1;
 12    #1  enable = 1;
 13    #1  data_in = 0;
 14    #1  enable = 0;
 15    #1  $finish;
 16 end
 17
 18 endmodule
You could download file tri_buf_using_assign.v here



Simulation Output




 TIME = 0 ENABLE = x DATA : x PAD x
 TIME = 1 ENABLE = 0 DATA : x PAD z
 TIME = 2 ENABLE = 0 DATA : 1 PAD z
 TIME = 3 ENABLE = 1 DATA : 1 PAD 1
 TIME = 4 ENABLE = 1 DATA : 0 PAD 0
 TIME = 5 ENABLE = 0 DATA : 0 PAD z



  ../images/main/bullet_star_pink.gif Waveform



../images/verilog/tri_wave.gif



  ../images/main/bullet_star_pink.gif Example - Mux




  1 module mux_using_assign();
  2 reg data_in_0, data_in_1;
  3 wire data_out;
  4 reg  sel;
  5
  6 assign data_out = (sel) ? data_in_1 : data_in_0;
  7
  8 // Testbench code here
  9 initial begin
 10   $monitor("TIME = %g SEL = %b DATA0 = %b DATA1 = %b OUT = %b",
 11     $time,sel,data_in_0,data_in_1,data_out);
 12   data_in_0 = 0;
 13   data_in_1 = 0;
 14   sel = 0;
 15    #10  sel = 1;
 16    #10  $finish;
 17 end
 18
 19 // Toggel data_in_0 at #1
 20 always
 21   #1  data_in_0 = ~data_in_0;
 22
 23 // Toggel data_in_1 at #2
 24 always
 25   #2  data_in_1 = ~data_in_1;
 26
 27 endmodule
You could download file mux_using_assign.v here



Simulation Output




 TIME = 0 SEL = 0 DATA0 = 0 DATA1 = 0 OUT = 0
 TIME = 1 SEL = 0 DATA0 = 1 DATA1 = 0 OUT = 1
 TIME = 2 SEL = 0 DATA0 = 0 DATA1 = 1 OUT = 0
 TIME = 3 SEL = 0 DATA0 = 1 DATA1 = 1 OUT = 1
 TIME = 4 SEL = 0 DATA0 = 0 DATA1 = 0 OUT = 0
 TIME = 5 SEL = 0 DATA0 = 1 DATA1 = 0 OUT = 1
 TIME = 6 SEL = 0 DATA0 = 0 DATA1 = 1 OUT = 0
 TIME = 7 SEL = 0 DATA0 = 1 DATA1 = 1 OUT = 1
 TIME = 8 SEL = 0 DATA0 = 0 DATA1 = 0 OUT = 0
 TIME = 9 SEL = 0 DATA0 = 1 DATA1 = 0 OUT = 1
 TIME = 10 SEL = 1 DATA0 = 0 DATA1 = 1 OUT = 1
 TIME = 11 SEL = 1 DATA0 = 1 DATA1 = 1 OUT = 1
 TIME = 12 SEL = 1 DATA0 = 0 DATA1 = 0 OUT = 0
 TIME = 13 SEL = 1 DATA0 = 1 DATA1 = 0 OUT = 0
 TIME = 14 SEL = 1 DATA0 = 0 DATA1 = 1 OUT = 1
 TIME = 15 SEL = 1 DATA0 = 1 DATA1 = 1 OUT = 1
 TIME = 16 SEL = 1 DATA0 = 0 DATA1 = 0 OUT = 0
 TIME = 17 SEL = 1 DATA0 = 1 DATA1 = 0 OUT = 0
 TIME = 18 SEL = 1 DATA0 = 0 DATA1 = 1 OUT = 1
 TIME = 19 SEL = 1 DATA0 = 1 DATA1 = 1 OUT = 1

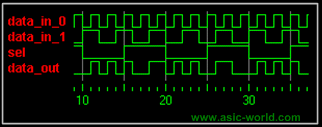

  ../images/main/bullet_star_pink.gif Waveform



../images/verilog/mux_wave.gif
