  ../../images/main/bullet_green_ball.gif Verification Of UART

In this example, we verify a simple UART.




This testbench will slightly different from what we have seen till now.




../images/specman/uart_verification.gif

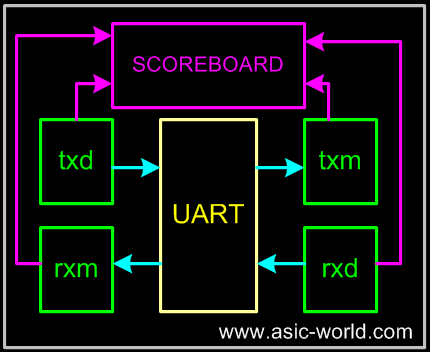

So the verification components are split into following blocks




  • TX generator
  • RX generator
  • TX monitor
  • RX monitor
  • Scoreboard
  • E testbench top
  • HDL Testbench top



We are going to have some more components that like reset. Logic to control when to terminate.
